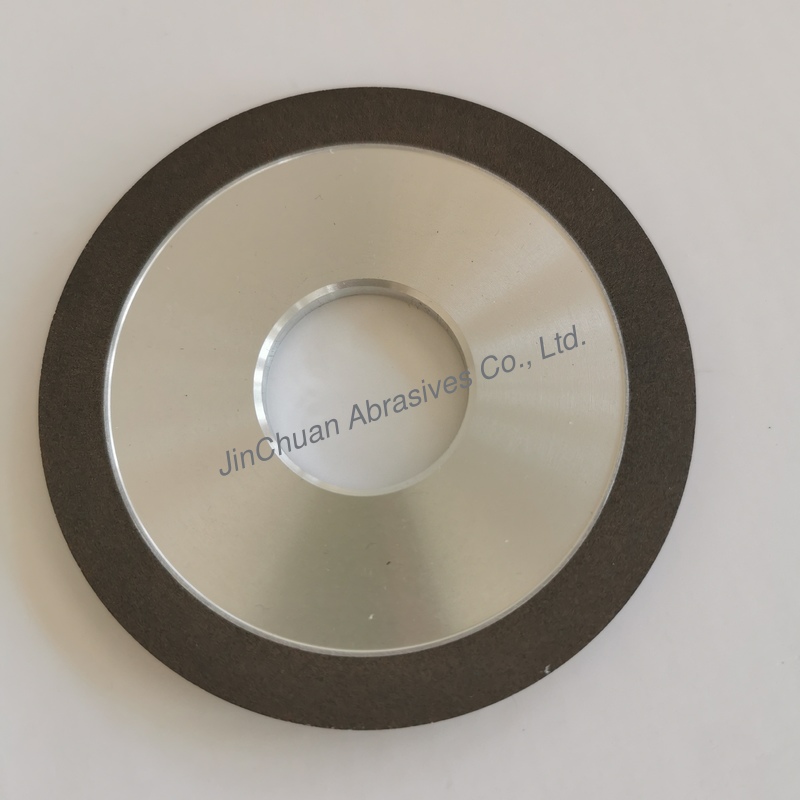

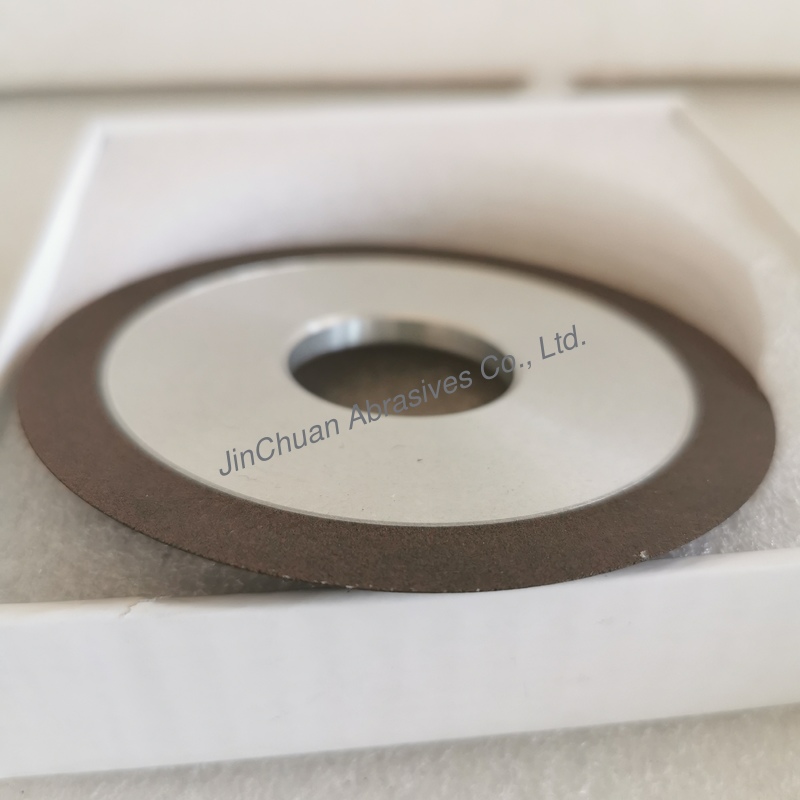

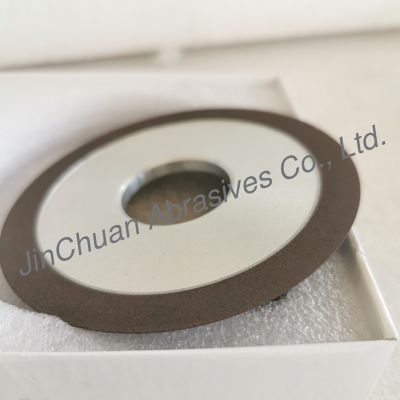

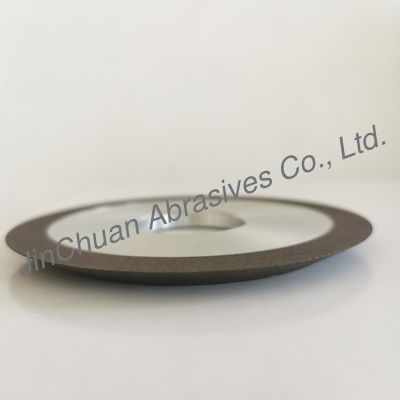

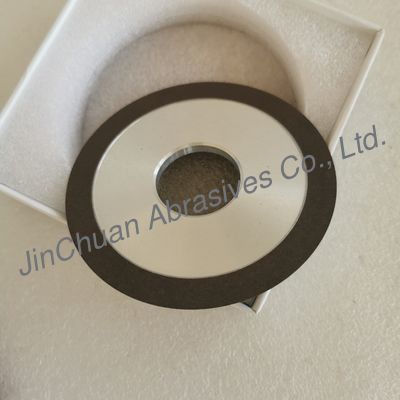

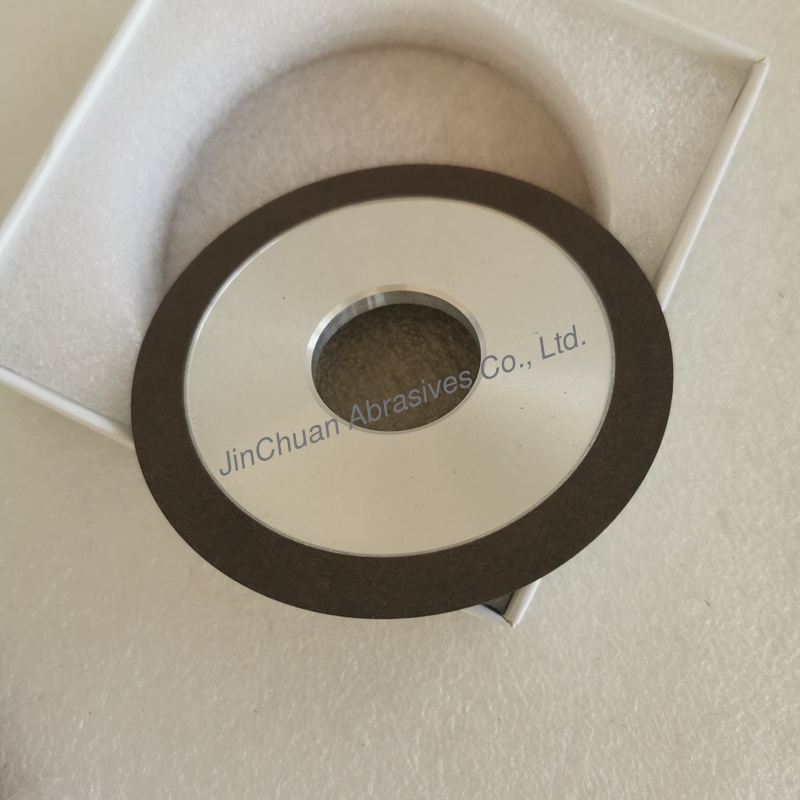

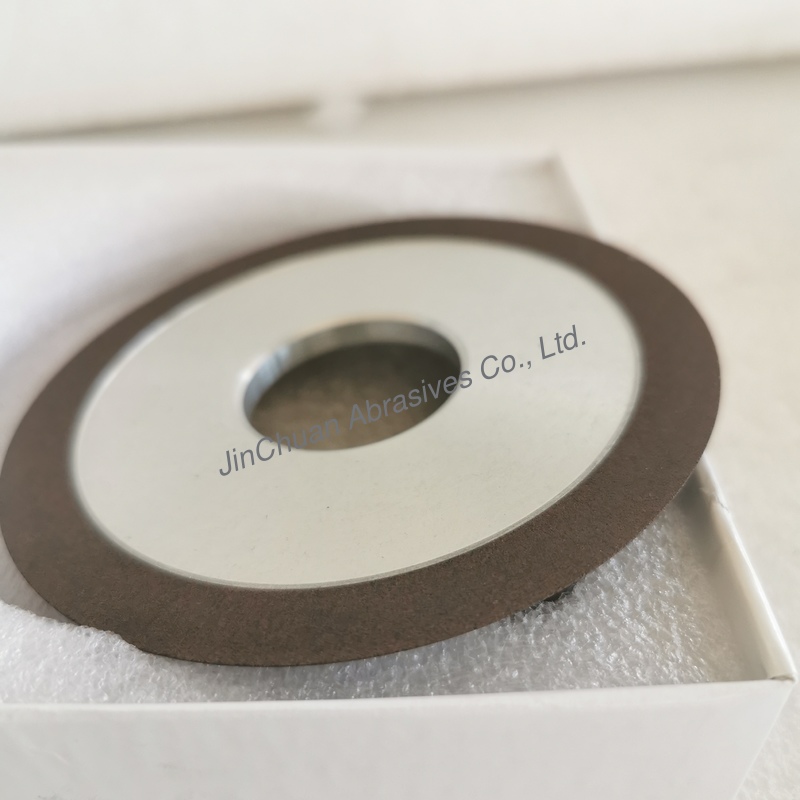

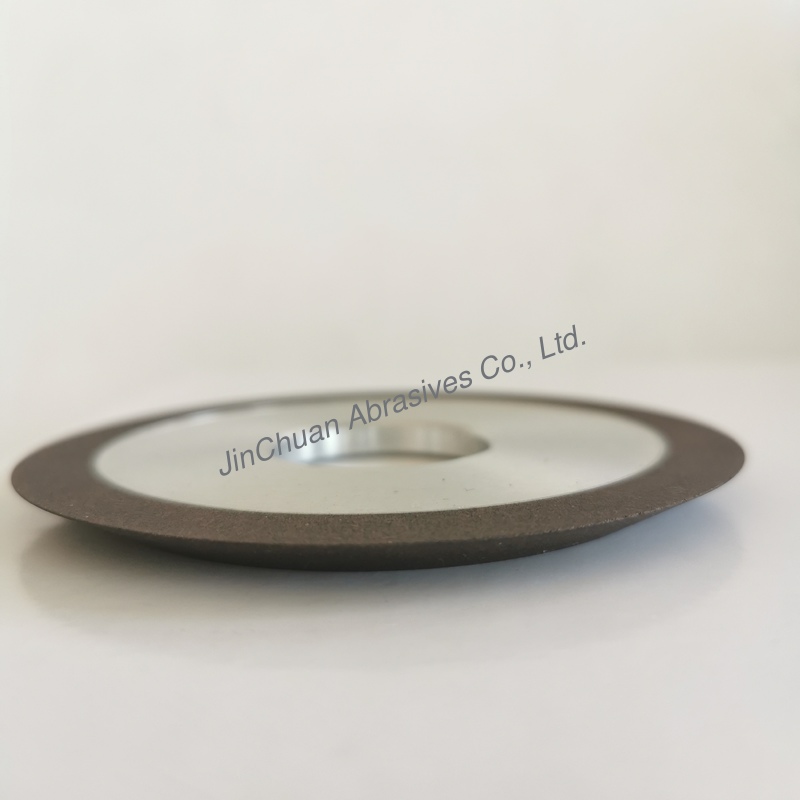

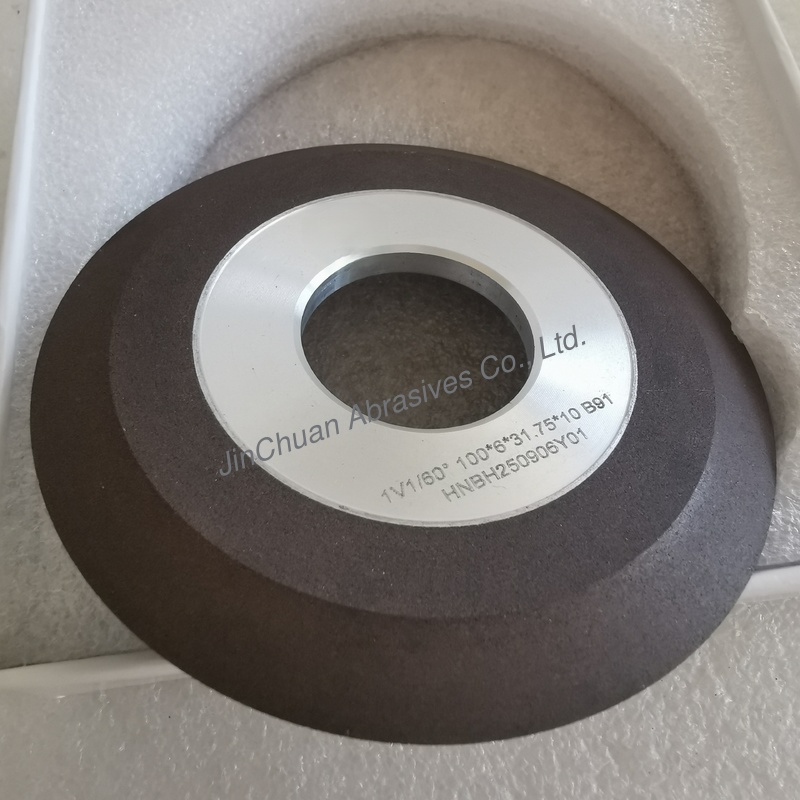

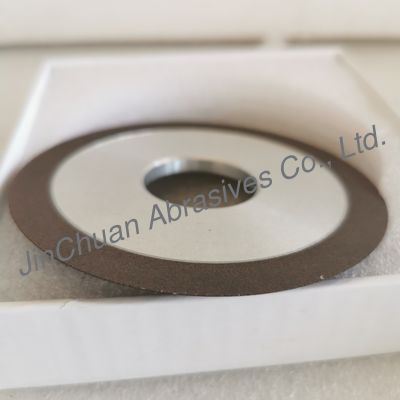

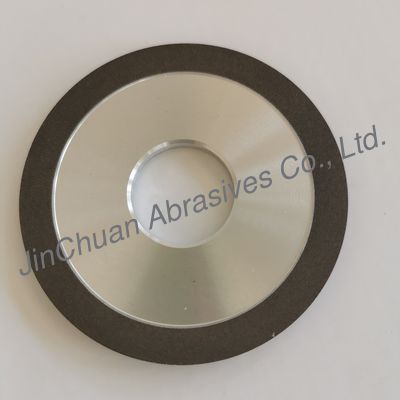

1V1/60° 100*6T*31.75*10mm Resin Bond CBN Grinding Wheel For Precision Grinding And Polishing
Product Details
| Diamètre: | 100 mm | Épaisseur: | 6 mm |
|---|---|---|---|
| Trou intérieur: | 31,75 mm | Abrasif: | Cbn |
| Pays d'origine: | CHINE | Matériau de base: | Base en aluminium |
| Largeur de l'abrasif: | 10 mm | Granularité: | B91 |
| Concentration: | C100 | Application: | Meulage et polissage de précision |
| Caractéristiques: | Haute efficacité, durable et pointu | Couleur du carton: | Violet |
| Lier: | Résine | Forme: | Plat |
| Dessin: | En fonction des besoins | Emballer: | Carton |
| Code HS: | 6804221000 | ||
| Mettre en évidence |
resin bond CBN grinding wheel,precision grinding resin wheel,60 degree CBN grinding wheel |
||
Product Description
Product Description:
Resin-bonded CBN grinding wheels are a type of abrasive tool used for grinding difficult-to-machine materials. They offer high efficiency, long life, high precision, and excellent surface finish. They are primarily used for face grinding, tool grinding, precision bearings, automotive parts, and machining various materials such as carbide, hardened steel, and ceramics. The resin bond imparts elasticity to the grinding wheel, making it less susceptible to workpiece burns and possessing excellent self-sharpening properties, making it an excellent choice for applications such as fine grinding and polishing.
Resin-bonded CBN grinding wheels offer exceptionally high surface finish quality. Thanks to their excellent self-sharpening properties and the inherent elasticity of the resin bond, they effectively absorb grinding vibrations, resulting in extremely low surface roughness (Ra), preventing surface damage such as burns and micro-cracks on the workpiece, and ensuring perfect machining integrity. Resin-bonded CBN grinding wheels also offer the advantages of low grinding forces and temperatures. Their sharp cutting characteristics reduce grinding resistance and energy consumption. Combined with coolant, they effectively control the temperature of the grinding zone, making them particularly suitable for machining heat-sensitive materials.
Resin-bonded CBN grinding wheels offer a wide range of adaptability: by adjusting the CBN concentration, grit size, resin formulation, and additives, they can be customized to meet a wide range of processing requirements, from rough grinding to mirror polishing.Resin-bonded CBN grinding wheels also offer excellent economic benefits: while the cost per wheel may be lower than that of metal-bonded grinding wheels, their true advantage lies in the reduced overall cost per part, resulting from their high material removal rate and excellent surface quality.
Features:
- High grinding efficiency
- Good self-sharpening
- Low grinding temperature
- High surface quality
- Lightweight design
- Wide adaptability
- Excellent cost-effectiveness
Technical Parameters:
| Material | CBN |
| Wheel diameter | 100mm |
| Thickness | 6mm |
| Base Body | Aluminum |
| Inner hole | 31.75mm |
| Grit Size | B91 |
| Country Of Origin | China |
| Packing | Standard Exported Carton Packing |
| Hs Code | 6804221000 |
| Application | Precision Grinding |
| Abrasive width | 10mm |
| Bond | Resin |
| Specification | 1V1 |
| Angle | 60° |
| Concentration | C100 |
| Sharp | Dish sharp |
Applications:
Resin-bonded CBN grinding wheels are primarily used for machining ferrous metals and high-hardness materials, particularly excelling in precision grinding and polishing. They are widely used in automotive parts (such as compressor cylinders and piston rings), bearings, molds, high-speed steel, cemented carbide, and powder metallurgy.
Main Applications and Applications
Precision Face Grinding: Used for rough and fine grinding of workpieces such as compressor cylinders, piston rings, and bearing faces, achieving high precision and a high finish.
Tool and Mold Manufacturing: Suitable for grinding high-speed steel and cemented carbide tools and molds.
Automotive Industry: Plays a key role in the precision manufacturing of engine components, precision bearings, seals, and other components.
General Machinery Manufacturing: Widely used for grinding various precision workpieces, including precision bearings, hydraulic pumps, and gears.
Other Applications: Can also be used for fine processing of glass, ceramics, powder metallurgy, and some new materials.
